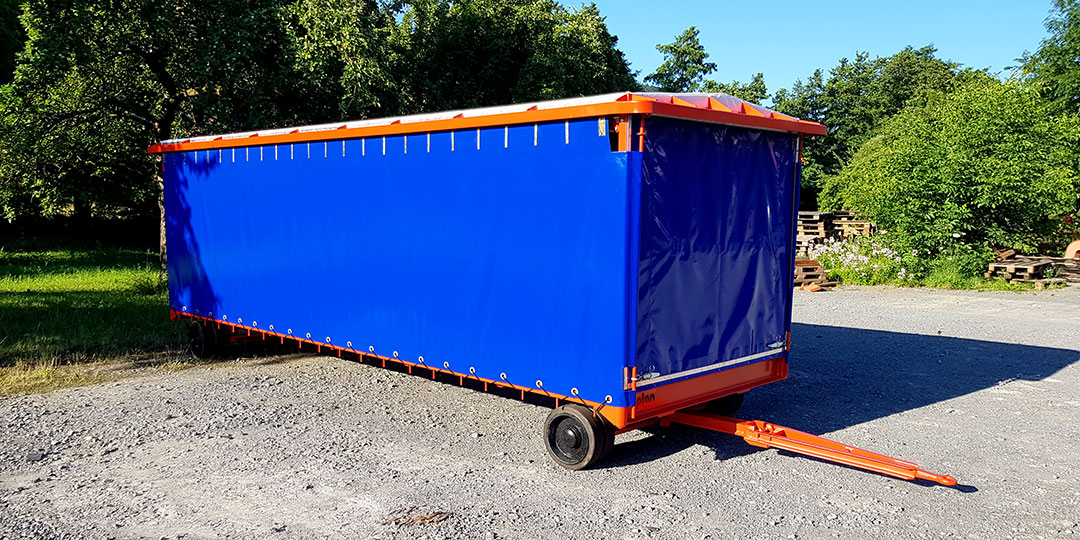

PLAN - Industrial drawbar trailer type 60

Ackermann steering – payload from 5 t to 20 t

Details

  • Suitable for multi-trailer use (tracking), very stable at all turning angles
  • Detachable drawbar for use on either end
  • Small turning radius
  • Low platform height
  • Level driving surface required
Typ 60 Typ 60 Typ 60 Typ 60 Typ 60 Typ 60

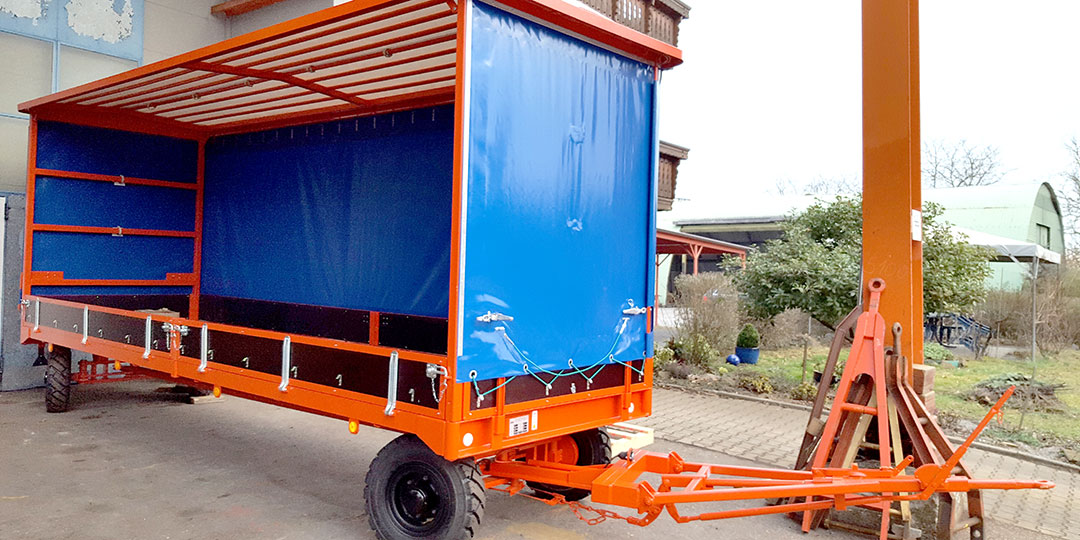

Steering

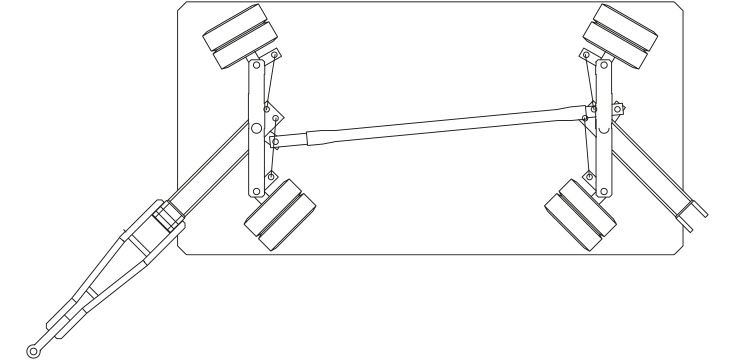

Symmetrical allwheel pivoted axle steering. Steering angle approx. 45°. All moving parts with sintered bronze sleeve bearings with grease nipple. Stable triangular drawbar with drop stop acc. to safety standard, including forged towing eye with Ø 35 mm according to DIN 8454 for up to 5 t, or Ø 40 mm according to DIN 74054 for loads over 5 t.

Running Gear

Axle beams, manufactured from flat steel, with square section pivot-axles mounted with generously sized pivot pins. Additional axial thrust bearing from 15 t. 4 PLAN-heavy-duty wheels.
