PLAN – Industrial drawbar trailer type 70-X

Front and rear pivot-post steering–payload from 50 t to 300 t

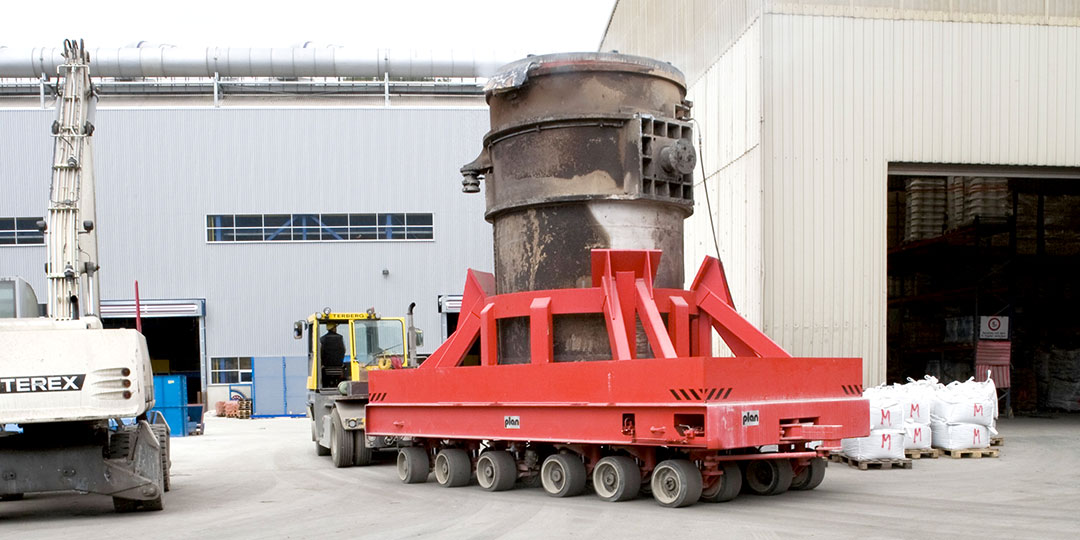

Details

  • Suitable for multi-trailer use (tracking), stable at all turning angles
  • Detachable drawbar for use on either end
  • Small turning radius
  • Low platform height
  • Oscillating axles for equal load distribution when driving on uneven surfaces
Type 70-X Type 70-X Type 70-X Type 70-X Type 70-X Type 70-X

Steering

Allwheel turntable steering with 8 or more turntabeles acc. to capacity. Special king-pin type turntable directly mounted to the frame. Track rods with adjustable ball-and-socket joints. Steering connection front/rear with adjustable tie rods transmitting tensile stress only. All moving parts with high precision conical roller bearings, ball-and-socket joints and bronze sleeves with grease nipple.

Running Gear

8 or more oscillating axles from square axle steel for lateral axle-/wheel load distribution. Lateral axle oscillation 8° (+/- 50 mm). Longitudinal axle load distribution with heavy coil-springs, maintenance-free. For extremely uneven surfaces hydraulic axle load distribution possible, extensible for elevating platform as well. 16 or more PLAN-heavy-duty wheels.
