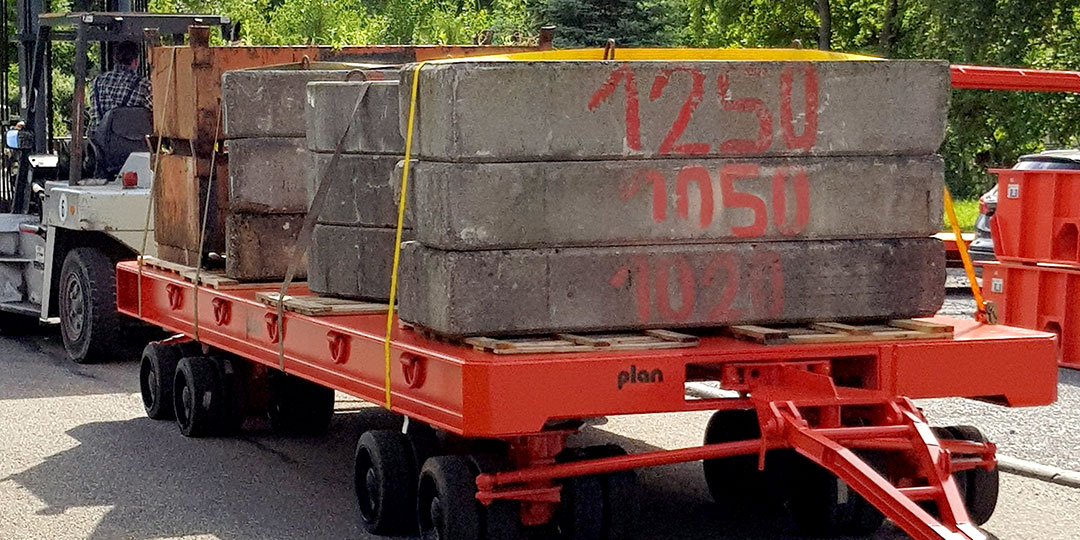

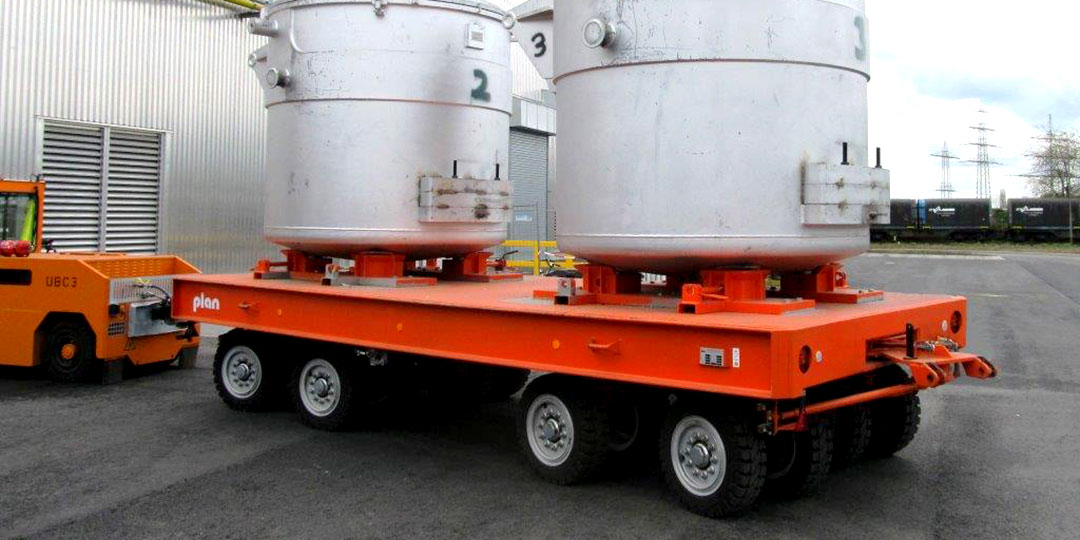

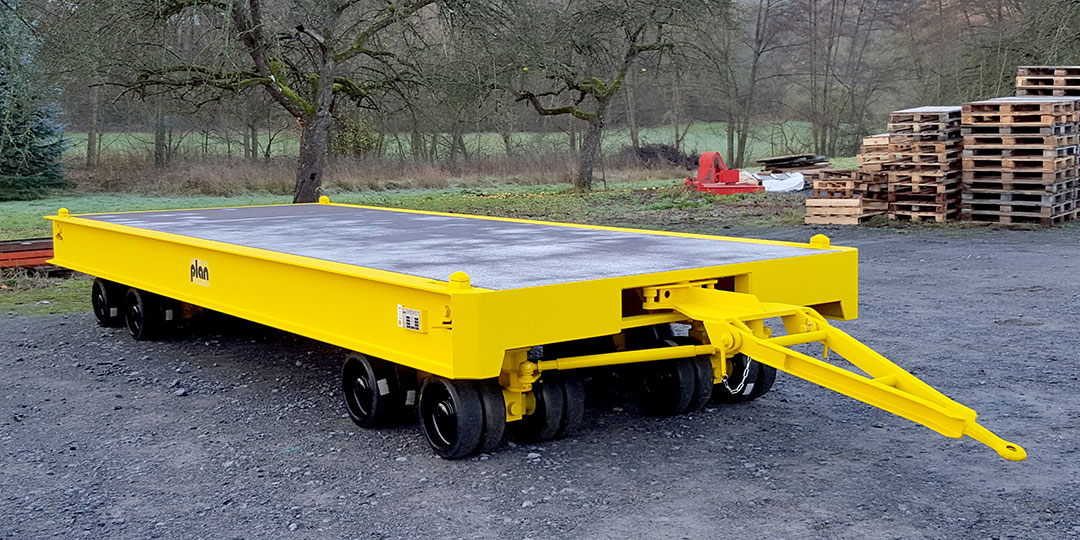

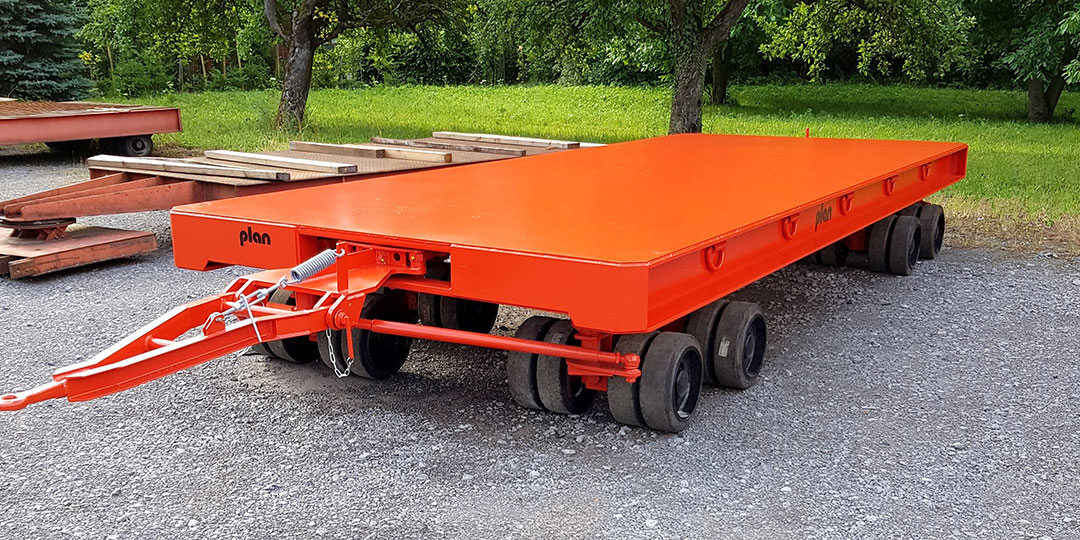

PLAN – Industrial drawbar trailer type 80-8

Front and rear pivot-post steering–payload from 30 t to 140 t

Details

  • Suitable for multi-trailer use (tracking), stable at all turning angles
  • Detachable drawbar for use on either end
  • Small turning radius
  • Low platform height
  • Oscillating axles and rocker beams for equal load distribution when driving on uneven surfaces
  • Very robust and suitable for steel works
Type 80-8 Type 80-8 Type 80-8 Type 80-8 Type 80-8 Type 80-8

Steering

Allwheel turntable steering with 8 turntabeles. Special king-pin type turntable directly mounted into rocker beams. Track rods with adjustable ball-and-socket joints. Steering connection front/rear with adjustable tie rods transmitting tensile stress only. All moving parts with high precision conical roller bearings, ball-and-socket joints and bronze sleeves with grease nipple.

Running Gear

8 oscillating axles from square axle steel via the turntables directly mounted to the rocker beams. The fully cardanic running gear suspension ensures best axle-/wheel load distribution laterally and longitudinally also on extremely uneven surface conditions. 16 PLAN-heavy-duty heels. This trailer type is specially designed to work in extremely arduous conditions with a high frequency of movements like in heavy industries or construction sites or similar.
