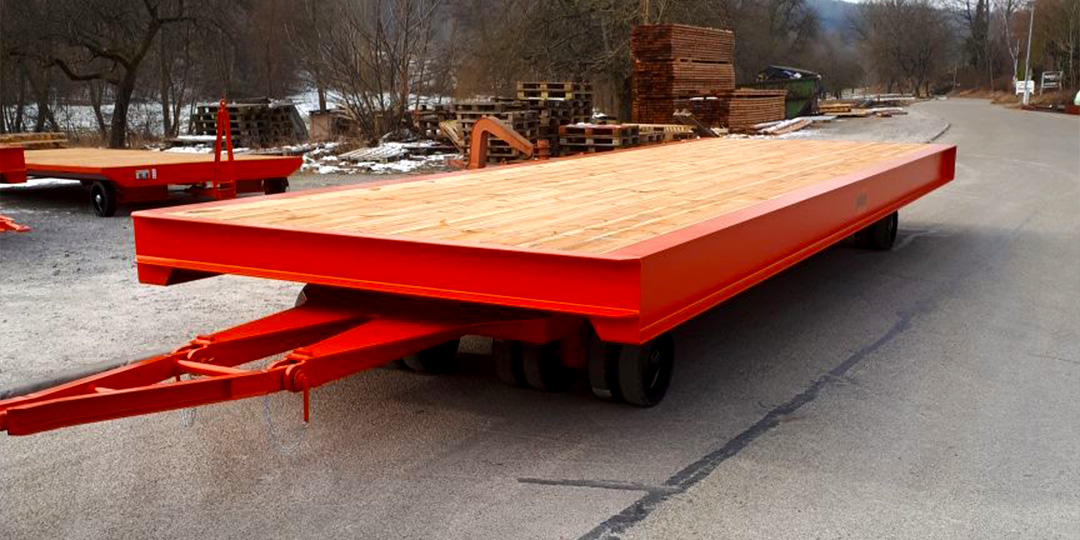

PLAN – Industrial drawbar trailer type 11-4

Front and rear turntable steering – payload from 20 t to 40 t

Details

  • Suitable for multi-trailer use (tracking), very stable at all turning angles
  • Detachable drawbar for use on either end
  • Small turning radius
  • High ground clearance
  • Oscillating axles for equal load distribution when driving on uneven surfaces
  • Very robust and low maintenance design
Typ 10 Typ 10 Typ 10 Typ 10 Typ 10 Typ 10

Steering

Two axle turntable steering with high precision ball races. Steering angle approx. 35°. Stable triangular drawbar with drop stop acc. to safety standard, including forged towing eye with Ø 40 mm according to DIN 74054.

Running Gear

4 oscillating axles from square axle steel for uniform axle-/wheel load distribution on uneven surfaces.
Lateral axle oscillation 8° (+/- 50 mm). 8 PLAN-heavy-duty wheels.
