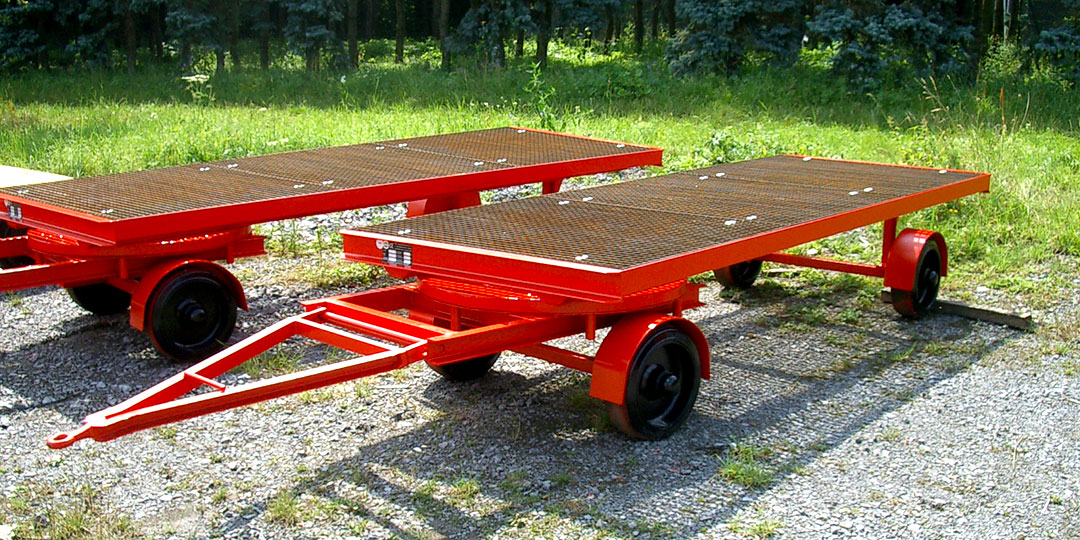

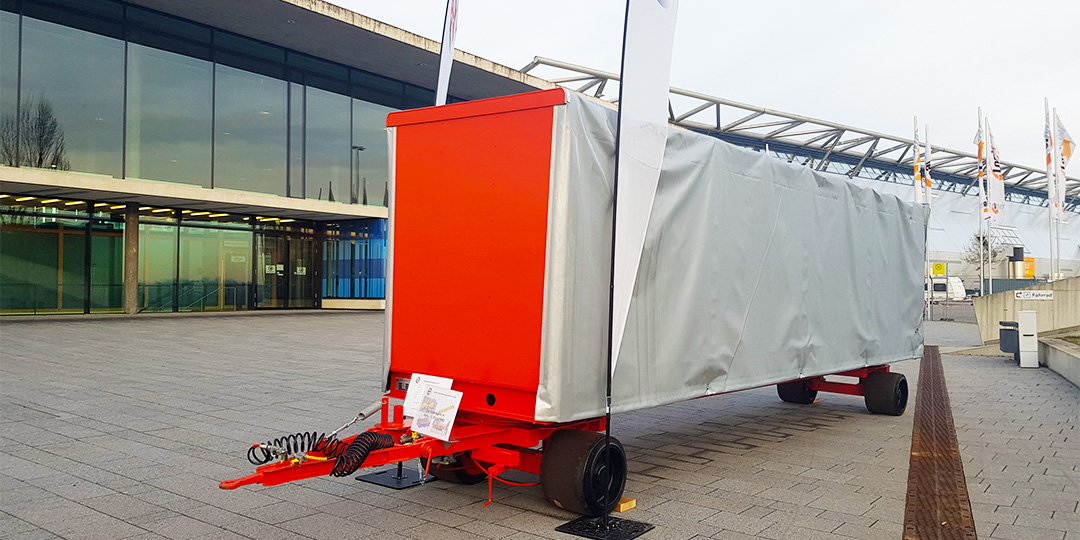

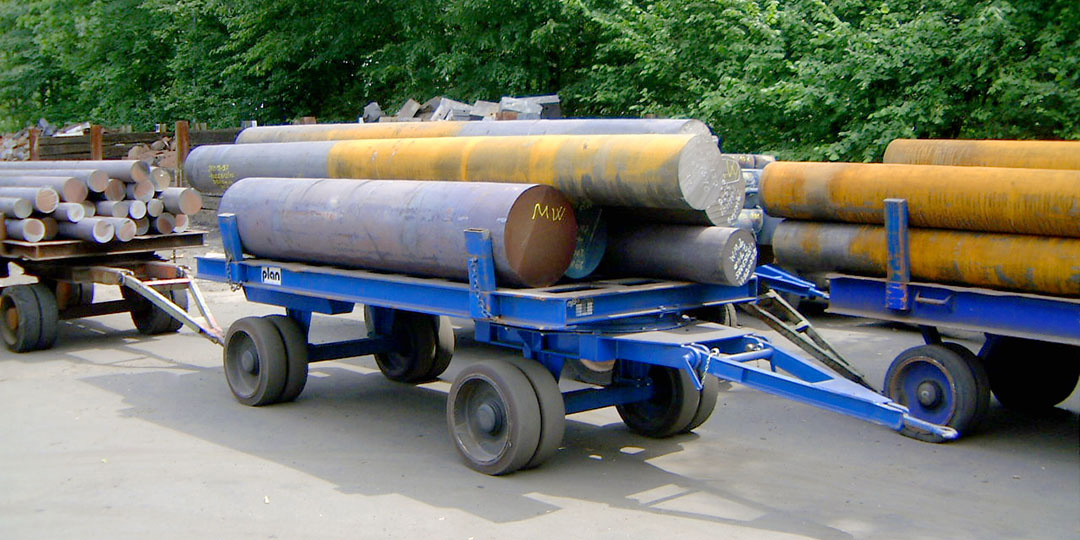

PLAN – Industrial drawbar trailer type 10

Turntable steering – payload from 5 t to 15 t

Details

  • Extremely maneuverable as single trailer because the steering is not limited
  • Stable up to 50° turning angle, danger of tipping at 90°
  • Not tracking in curves, so not suitable for multi-trailer usage
  • Very robust and low maintenance design
Type 10 Type 10 Type 10 Type 10 Type 10 Type 10

Steering

Front axle turntable with a heavy, high-precision ball race, entirely 360° turnable. Stable triangular drawbar with drop stop acc. to safety standard, including forged towing eye with Ø 35 mm according to DIN 8454 for up to 5 t, or Ø 40 mm according to DIN 74054 for loads over 5 t.

Running Gear

2 axles made of square hollow profiles with solidly manufactured and welded wheel mounts. 4 PLAN heavy-duty wheels.
