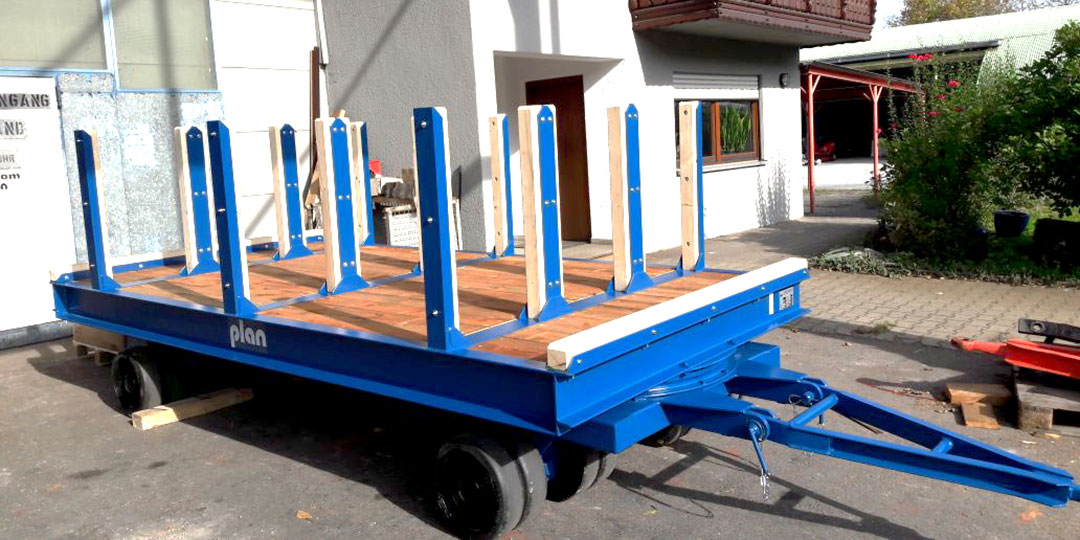

PLAN – Industrial drawbar trailer type 10-4

Turntable steering – payload from 20 t to 40 t

Typ 10-4

Details

  • Extremely maneuverable as single trailer because the steering is not limited
  • Stable up to 50° turning angle, danger of tipping at 90°
  • Not tracking in curves, so not suitable for multi-train usage
  • Oscillating axles for equal load distribution when driving on uneven surfaces
  • Very robust and low maintenance design
Type 10-4 Type 10-4 Type 10-4 Type 10-4 Type 10-4 Type 10-4

Steering

Front axle turntable with a heavy, high-precision ball race, entirely 360° turnable. Stable triangular drawbar with drop stop acc. to safety standard, including forged towing eye with Ø 40 mm according to DIN 74054.

Running Gear

4 oscillating axles from square axle steel for uniform axle-/wheel load distribution on uneven surfaces.
Lateral axle oscillation 8° (+/- 50 mm). 8 PLAN-heavy-duty wheels.
