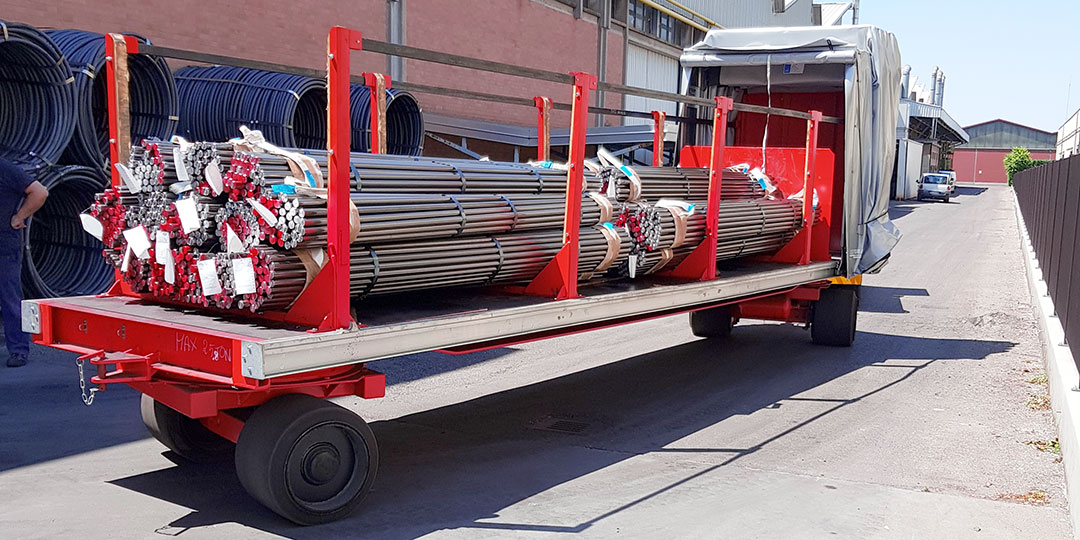

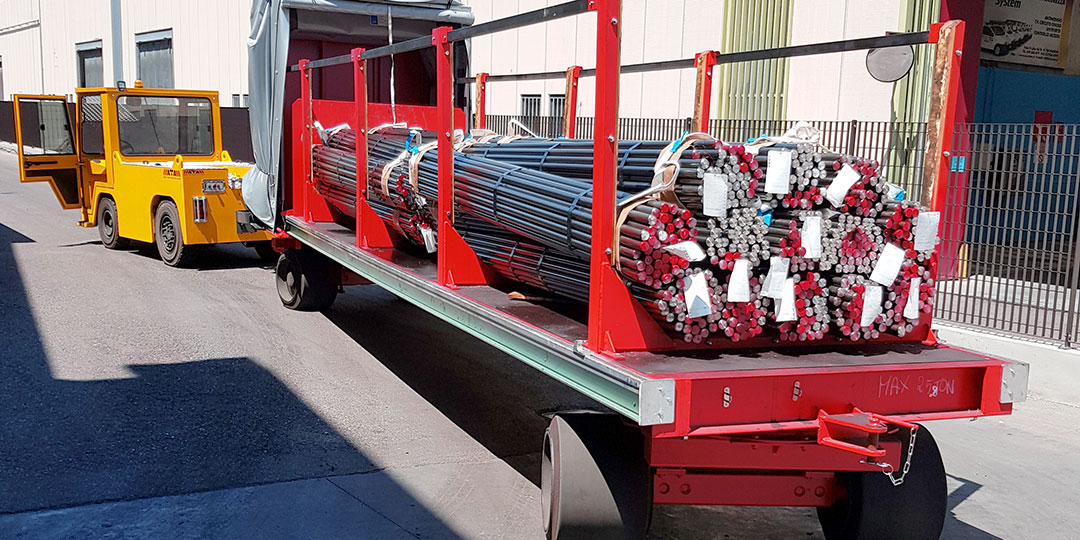

PLAN – Industrial drawbar trailer type 11

Front and rear turntable steering – payload from 5 t to 15 t

Details

Suitable for multi-trailer use (tracking), very stable at all turning angles
Detachable drawbar for use on either end
Small turning radius
High ground clearance
Very robust and low maintenance design

Steering

Two axle turntable steering with high precision ball races. Steering angle approx. 35°. Stable triangular drawbar with drop stop acc. to safety standard, including forged towing eye with Ø 35 mm according to DIN 8454 for up to 5 t, or Ø 40 mm according to DIN 74054 for loads over 5 t.

Running Gear

2 axles made of square hollow profiles with solidly manufactured and welded wheel mounts. 4 PLAN heavy-duty wheels.
